2D Heat Equation

Overview

This is the 2D version of 1D heat equation. It is defined by

\[u_t = \mu (u_{xx} + u_{yy})\]

where $x,y\in[0,L]$ is the temperature and $\mu$ is the thermal diffusivity parameter.

Finite Difference Model

The finite difference approach is similar to the 1D version but with additional complications due to the addition of an extra dimension. If the 2D domain is spatially discretized using $N$ and $M$ grid points for the $x$ and $y$ directions, respectively, then the toeplitz matrices corresponding to each $x$ and $y$ directions are identical to that of the 1D case which is defined by

\[\mathbf{A}_x\in\mathbb{R}^{N\times N} \qquad \text{and} \qquad \mathbf{A}_y\in\mathbb{R}^{M\times M}.\]

However, to construct the matrix for the overall system we utilize the Kronecker product. Define the state vector $\mathbf{z}$ which flattens the 2D grid into a vector then the linear matrix becomes

\[\mathbf{A} = \mathbf{A}_y \otimes \mathbf{I}_{N} + \mathbf{I}_M \otimes \mathbf{A}_x\]

and the $\mathbf{B}$ matrix will be constructed such that they add the inputs to the appropriate indices of the flattened state vector $\mathbf z$.

Thus, we arrive at a $N$-dimensional linear time-invariant (LTI) system:

\[\dot{\mathbf{u}}(t) = \mathbf{A}\mathbf{u}(t) + \mathbf{B}\mathbf{w}(t)\]

We then consider the numerical integration scheme. For our numerical integration we can consider three approaches

  • Forward Euler
  • Backward Euler
  • Crank-Nicolson

Refer to 1D heat equation for details on the numerical integration schemes.

Example

using CairoMakie
using LinearAlgebra
using PolynomialModelReductionDataset: Heat2DModel
using UniqueKronecker: invec

# Setup
Ω = ((0.0, 1.0), (0.0, 1.0))
Nx = 2^5
Ny = 2^5
heat2d = Heat2DModel(
    spatial_domain=Ω, time_domain=(0,2),
    Δx=(Ω[1][2] + 1/Nx)/Nx, Δy=(Ω[2][2] + 1/Ny)/Ny, Δt=1e-3,
    diffusion_coeffs=0.1, BC=(:dirichlet, :dirichlet)
)
xgrid0 = heat2d.yspan' .* ones(heat2d.spatial_dim[1])
ygrid0 = ones(heat2d.spatial_dim[2])' .* heat2d.xspan
ux0 = sin.(2π * xgrid0) .* cos.(2π * ygrid0)
heat2d.IC = vec(ux0)  # initial condition

# Boundary condition
Ubc = [1.0, 1.0, -1.0, -1.0]
Ubc = repeat(Ubc, 1, heat2d.time_dim)

# Operators
A, B = heat2d.finite_diff_model(heat2d, heat2d.diffusion_coeffs)

# Integrate
U = heat2d.integrate_model(
    heat2d.tspan, heat2d.IC, Ubc; linear_matrix=A, control_matrix=B,
    system_input=true, integrator_type=:BackwardEuler
)

U2d = invec.(eachcol(U), heat2d.spatial_dim...)
fig1 = Figure()
ax1 = Axis3(fig1[1, 1], xlabel="x", ylabel="y", zlabel="u(x,y,t)")
sf = surface!(ax1, heat2d.xspan, heat2d.yspan, U2d[1])
Colorbar(fig1[1, 2], sf)
fig1

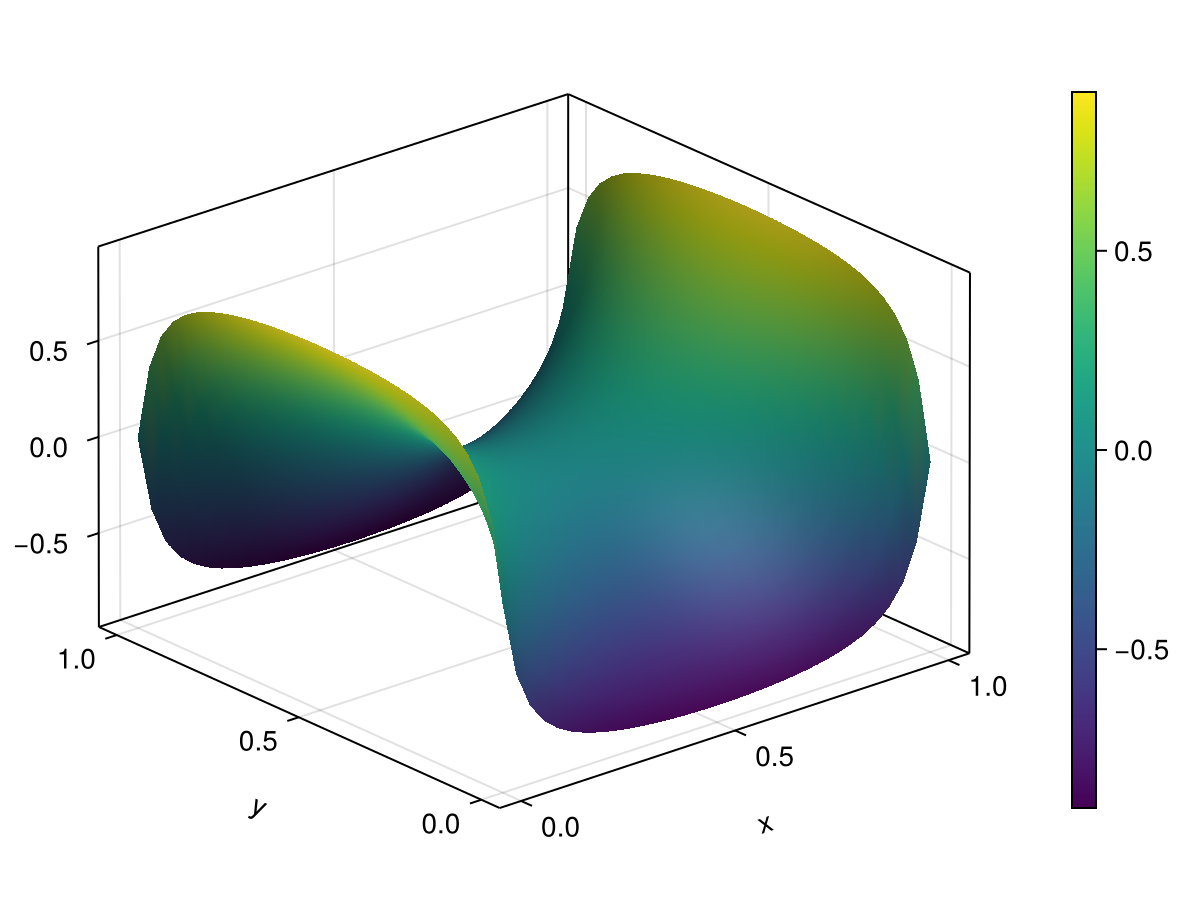

Example block output
fig2 = Figure()
ax2 = Axis3(fig2[1, 1], xlabel="x", ylabel="y", zlabel="u(x,y,t)")
sf = surface!(ax2, heat2d.xspan, heat2d.yspan, U2d[end])
Colorbar(fig2[1, 2], sf)
fig2

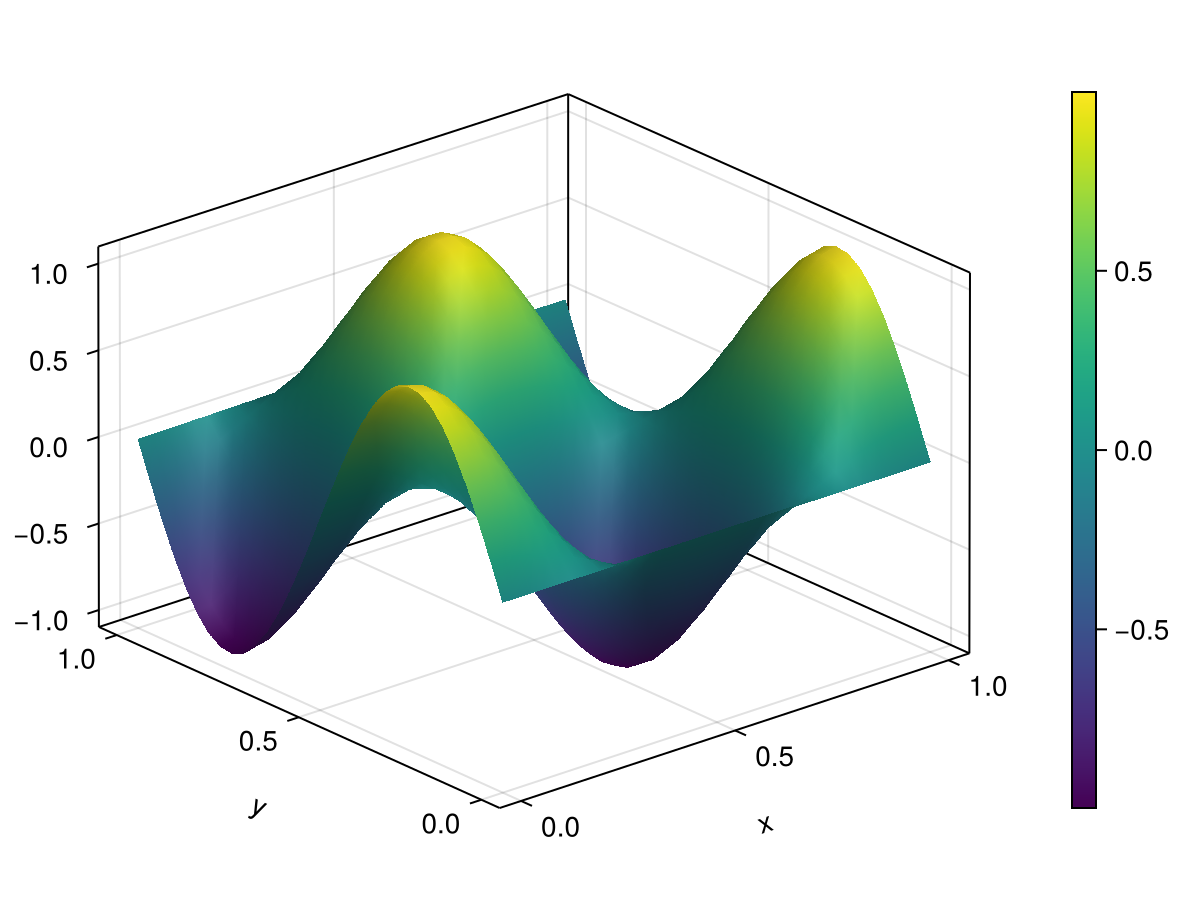

Example block output

Fast Solvers (Backward Euler)

As in addition, we also offer a fast implementation of the backward Euler method which utilizes the structure of the linear matrix $\mathbf{A}$ to solve the linear system at each time step more efficiently. This is done by precomputing a solver that exploits the Kronecker product structure of $\mathbf{A}$ and then using this solver to perform the integration. Solver precomputation is done by the build_fast_be_solver function and the integration is done by the integrate_model_fast function. This supports both the Dirichlet and periodic boundary conditions. An example of using the fast solver is as follows.

# Dirichlet
A, B = finite_diff_model(model, μ)
U = ...                                  # boundary inputs, 4 × Tdim
solver = build_fast_be_solver(model, μ)  # one-time precompute
state = integrate_model_fast(solver, B, U, model.tspan, model.IC)

# Periodic (no boundary inputs)
state = integrate_model_fast(model, μ, model.tspan, model.IC)

API

PolynomialModelReductionDataset.Heat2D.Heat2DModel — Type
mutable struct Heat2DModel <: AbstractModel

2 Dimensional Heat Equation Model

\[\frac{\partial u}{\partial t} = \mu\left(\frac{\partial^2 u}{\partial x^2} + \frac{\partial^2 u}{\partial y^2}\right)\]

Fields

  • spatial_domain::Tuple{Tuple{<:Real,<:Real}, Tuple{<:Real,<:Real}}: spatial domain (x, y)
  • time_domain::Tuple{Real,Real}: temporal domain
  • param_domain::Tuple{Real,Real}: parameter domain
  • Δx::Real: spatial grid size (x-axis)
  • Δy::Real: spatial grid size (y-axis)
  • Δt::Real: temporal step size
  • spatial_dim::Tuple{Int64,Int64}: spatial dimension x and y
  • time_dim::Int64: temporal dimension
  • param_dim::Int64: parameter dimension
  • BC::Tuple{Symbol,Symbol}: boundary condition
  • IC::Array{Float64}: initial condition
  • diffusion_coeffs::Union{AbstractArray{<:Real},Real}: diffusion coefficients
  • xspan::Vector{Float64}: spatial grid points (x-axis)
  • yspan::Vector{Float64}: spatial grid points (y-axis)
  • tspan::Vector{Float64}: temporal points
  • finite_diff_model::Function: finite difference model
  • integrate_model::Function: integrate model
source
PolynomialModelReductionDataset.Heat2D.FastDirichletSolver — Type
struct FastDirichletSolver <: PolynomialModelReductionDataset.Heat2D.AbstractFastBESolver

Fast backward Euler solver for the 2D heat equation with Dirichlet BCs, using fast diagonalization of the Kronecker-sum operator.

Built once for a given (Nx, Ny, Δx, Δy, μ, Δt). All allocations happen at construction; subsequent solves are allocation-free.

source
PolynomialModelReductionDataset.Heat2D.FastDenseSolver — Type
struct FastDenseSolver <: PolynomialModelReductionDataset.Heat2D.AbstractFastBESolver

Fast backward Euler solver for a dense, unstructured matrix A (typically from a reduced-order model). Precomputes (I - Δt A)⁻¹ via eigendecomposition so that each time step is a single dense matrix-vector multiply.

Fields

  • M_inv::Matrix{Float64}: Precomputed (I - Δt A)⁻¹, real r×r matrix applied via mul! each step

  • V::Matrix{ComplexF64}: Eigenvectors of A (complex, stored for update_timestep!)

  • Vinv::Matrix{ComplexF64}: Inverse of V (complex)

  • λ::Vector{ComplexF64}: Eigenvalues of A (complex)

  • r::Int64: Dimension of the system

  • eigen_based::Bool: Whether the solver was constructed via eigendecomposition (false = LU fallback)

source
PolynomialModelReductionDataset.Heat2D.integrate_model_fast — Function
integrate_model_fast(solver, B, U, tdata, IC)

Fast backward Euler integrator. Same signature as the original integrate_model(A, B, U, tdata, IC) except it takes a precomputed solver::AbstractFastBESolver in place of the assembled matrix A. Pass B and U as empty matrices (or skip the entries) when there are no boundary inputs (e.g. periodic BCs).

Assumes a uniform time step (tdata[i] - tdata[i-1] constant) matching the Δt used when the solver was built.

source
integrate_model_fast(solver, tdata, u0, B, input)

Integrate a reduced-order system du/dt = A u + B f using backward Euler with a precomputed FastDenseSolver.

Arguments

  • solver::FastDenseSolver: precomputed solver (from FastDenseSolver(A, Δt))
  • tdata::AbstractVector: time points (uniform spacing must match solver Δt)
  • u0::AbstractVector: initial condition (length r)
  • B::AbstractMatrix: input matrix (r × m); pass zeros(r,0) if no input
  • input::AbstractMatrix: input signals (m × Tdim); pass zeros(0,Tdim) if no input

Returns

  • u::Matrix{Float64}: state trajectory (r × Tdim)
source
PolynomialModelReductionDataset.Heat2D.integrate_model_fast — Method
integrate_model_fast(solver, B, U, tdata, IC)

Fast backward Euler integrator. Same signature as the original integrate_model(A, B, U, tdata, IC) except it takes a precomputed solver::AbstractFastBESolver in place of the assembled matrix A. Pass B and U as empty matrices (or skip the entries) when there are no boundary inputs (e.g. periodic BCs).

Assumes a uniform time step (tdata[i] - tdata[i-1] constant) matching the Δt used when the solver was built.

source
PolynomialModelReductionDataset.Heat2D.integrate_model_fast — Method
integrate_model_fast(solver, tdata, u0, B, input)

Integrate a reduced-order system du/dt = A u + B f using backward Euler with a precomputed FastDenseSolver.

Arguments

  • solver::FastDenseSolver: precomputed solver (from FastDenseSolver(A, Δt))
  • tdata::AbstractVector: time points (uniform spacing must match solver Δt)
  • u0::AbstractVector: initial condition (length r)
  • B::AbstractMatrix: input matrix (r × m); pass zeros(r,0) if no input
  • input::AbstractMatrix: input signals (m × Tdim); pass zeros(0,Tdim) if no input

Returns

  • u::Matrix{Float64}: state trajectory (r × Tdim)
source
PolynomialModelReductionDataset.Heat2D.update_timestep! — Method
update_timestep!(solver, Δt_new)

Rebuild M_inv for a new time step Δt_new without repeating the eigendecomposition of A. Cost: O(r²).

If the solver was constructed via the LU fallback (nearly defective A), this recomputes inv(I - Δt_new A) from the stored eigendecomposition anyway, which may be inaccurate; a warning is issued.

source
