Modified Korteweg-de Vries Equation
The Modified Korteweg-de Vries (mKdV) equation is a nonlinear partial differential equation (PDE) that is a variation of the well-known Korteweg-de Vries (KdV) equation. The mKdV equation is significant in the study of solitons, integrable systems, and nonlinear wave propagation. It models phenomena in various physical contexts, such as nonlinear optics, plasma physics, and fluid dynamics.
The standard form of the mKdV equation in one spatial dimension is:
\[u_t + \alpha u_{xxx} + \beta u^2u_{x} = 0\]
Where:
- $u(x, t)$ is a scalar function representing the wave profile at position $x$ and time $t$.
- $\alpha$ and $\beta$ are parameters.
Key Features
- Nonlinearity: The term $u^2 \frac{\partial u}{\partial x}$ introduces cubic nonlinearity, leading to rich dynamics.
- Dispersion: The third-order derivative $\frac{\partial^3 u}{\partial x^3}$ accounts for dispersive effects.
- Integrability: The mKdV equation is integrable via the inverse scattering transform (IST), similar to the KdV equation.
Physical Interpretation
- Nonlinear Wave Propagation: Describes the evolution of nonlinear waves in dispersive media.
- Solitons: Supports solitary wave solutions that maintain their shape during propagation and after interactions.
- Applications:
- Plasma Physics: Modeling ion-acoustic waves in plasmas.
- Nonlinear Optics: Describing pulse propagation in optical fibers under certain conditions.
- Fluid Dynamics: Representing internal waves in stratified fluids.
Properties
Soliton Solutions
The mKdV equation admits soliton solutions, which can be obtained using methods like the inverse scattering transform.
One-Soliton Solution:
For the focusing mKdV equation, the one-soliton solution is:
\[u(x, t) = \pm \frac{v}{\sqrt{2}} \operatorname{sech} \left( \frac{v}{\sqrt{2}} (x - v t - x_0) \right)\]
Where:
- $v$ is the velocity of the soliton.
- $x_0$ is the initial position.
Miura Transformation
There exists a connection between the mKdV and KdV equations via the Miura transformation:
\[u = w_x + w^2\]
Where $w$ satisfies the KdV equation. This transformation maps solutions of the mKdV equation to solutions of the KdV equation, linking their integrable structures.
Generalizations
- Higher-Order mKdV Equations: Including higher-order terms to model more complex physical situations.
- Coupled mKdV Equations: Systems of mKdV equations modeling interactions between multiple wave modes.
- Non-integrable Variants: Modifications that break integrability but model additional physical effects.
Applications
- Nonlinear Optics: Pulse shaping and propagation in optical fibers with specific nonlinear characteristics.
- Plasma Physics: Studying nonlinear structures like solitons and shock waves in plasma environments.
- Mathematical Physics: Exploring integrable systems, symmetry reductions, and exactly solvable models.
Model
The Modified Korteweg-de Vries equation becomes a cubic model:
\[\dot{\mathbf{u}}(t) = \mathbf{Au}(t) + \mathbf{G}(\mathbf{u}(t) \otimes \mathbf{u}(t) \otimes \mathbf{u}(t)) + \mathbf{Bw}(t)\]
or
\[\dot{\mathbf{u}}(t) = \mathbf{Au}(t) + \mathbf{E}(\mathbf{u}(t) \oslash \mathbf{u}(t) \oslash \mathbf{u}(t)) + \mathbf{Bw}(t)\]
where
- $\mathbf{u}\in\mathbb{R}^N$: the state vector
- $\mathbf{w}\in\mathbb{R}^m$: the input vector
- $\mathbf{A}\in\mathbb{R}^{N\times N}$: the linear state matrix
- $\mathbf{G}\in\mathbb{R}^{N\times N^3}$: the cubic state matrix with redundancy
- $\mathbf{E}\in\mathbb{R}^{N\times N(N+1)(N+2)/6}$: the cubic state matrix without redundancy
- $\mathbf{B}\in\mathbb{R}^{N\times m}$: the control input matrix
Numerical Integration
For the numerical integration we consider two methods:
- Semi-Implicit Euler (SIE)
- Crank-Nicolson Adam-Bashforth (CNAB)
For the exact expressions of the time-stepping check Allen-Cahn equation.
Example
using CairoMakie
using LinearAlgebra
using PolynomialModelReductionDataset: ModifiedKortewegDeVriesModel
# Setup
Ω = (0.0, 3.0)
Nx = 2^8; dt = 1e-3
mKdV = ModifiedKortewegDeVriesModel(
spatial_domain=Ω, time_domain=(0.0, 3.0), Δx=(Ω[2] + 1/Nx)/Nx, Δt=dt,
params=Dict(:a => 1, :b => 3), BC=:dirichlet,
)
DS = 100
mKdV.IC = 2 * cos.(2π * mKdV.xspan / (Ω[2] - Ω[1])) # + 0.5 * cos.(4π * mKdV.xspan / (Ω[2] - Ω[1]))
Ubc1 = 0.5ones(1,mKdV.time_dim)
Ubc2 = -0.5ones(1,mKdV.time_dim)
Ubc = [Ubc1; Ubc2]
# Operators
A, E, B = mKdV.finite_diff_model(mKdV, mKdV.params)
# Integrate
U = mKdV.integrate_model(
mKdV.tspan, mKdV.IC, Ubc;
linear_matrix=A, cubic_matrix=E, control_matrix=B,
system_input=true, integrator_type=:CNAB,
)

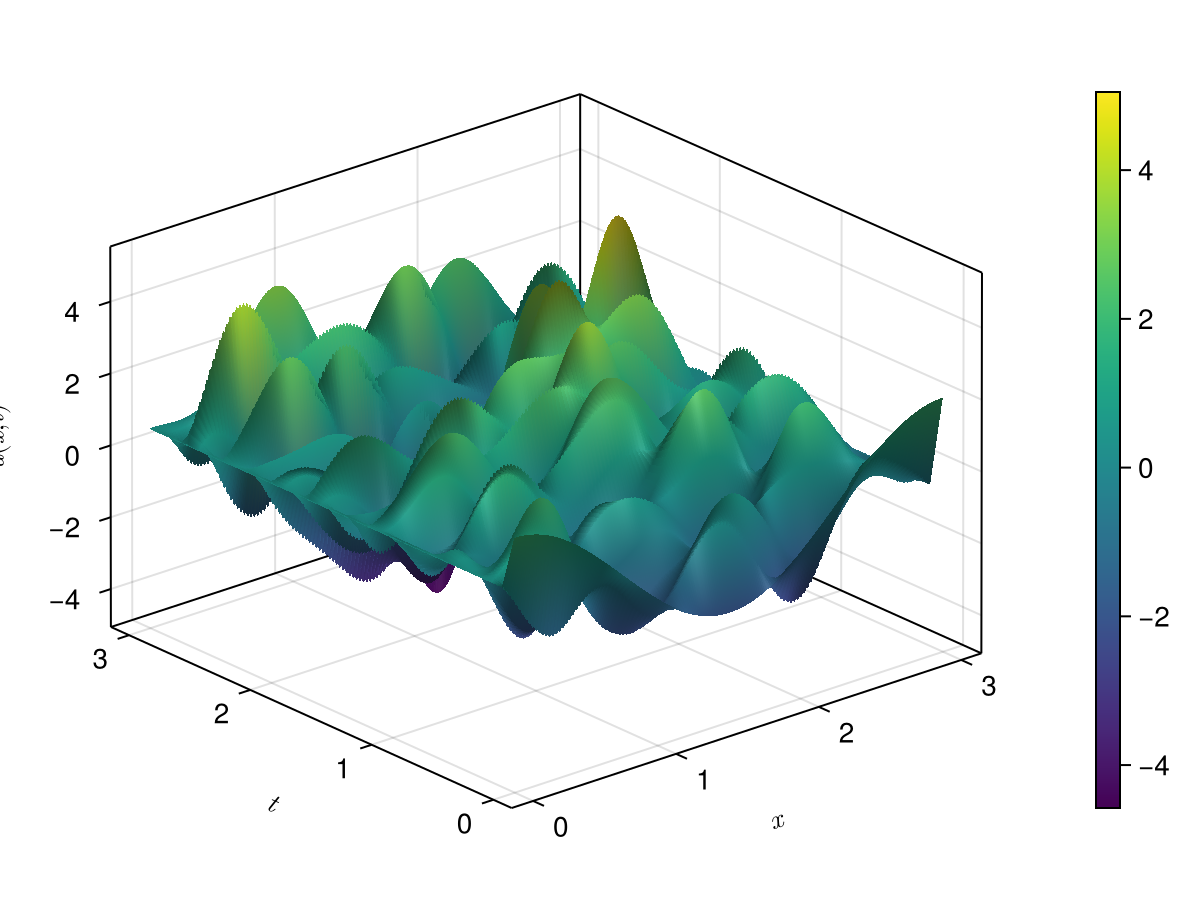

# Surface plot
fig3, _, sf = CairoMakie.surface(mKdV.xspan, mKdV.tspan[1:DS:end], U[:, 1:DS:end],
axis=(type=Axis3, xlabel=L"x", ylabel=L"t", zlabel=L"u(x,t)"))
CairoMakie.Colorbar(fig3[1, 2], sf)
fig3

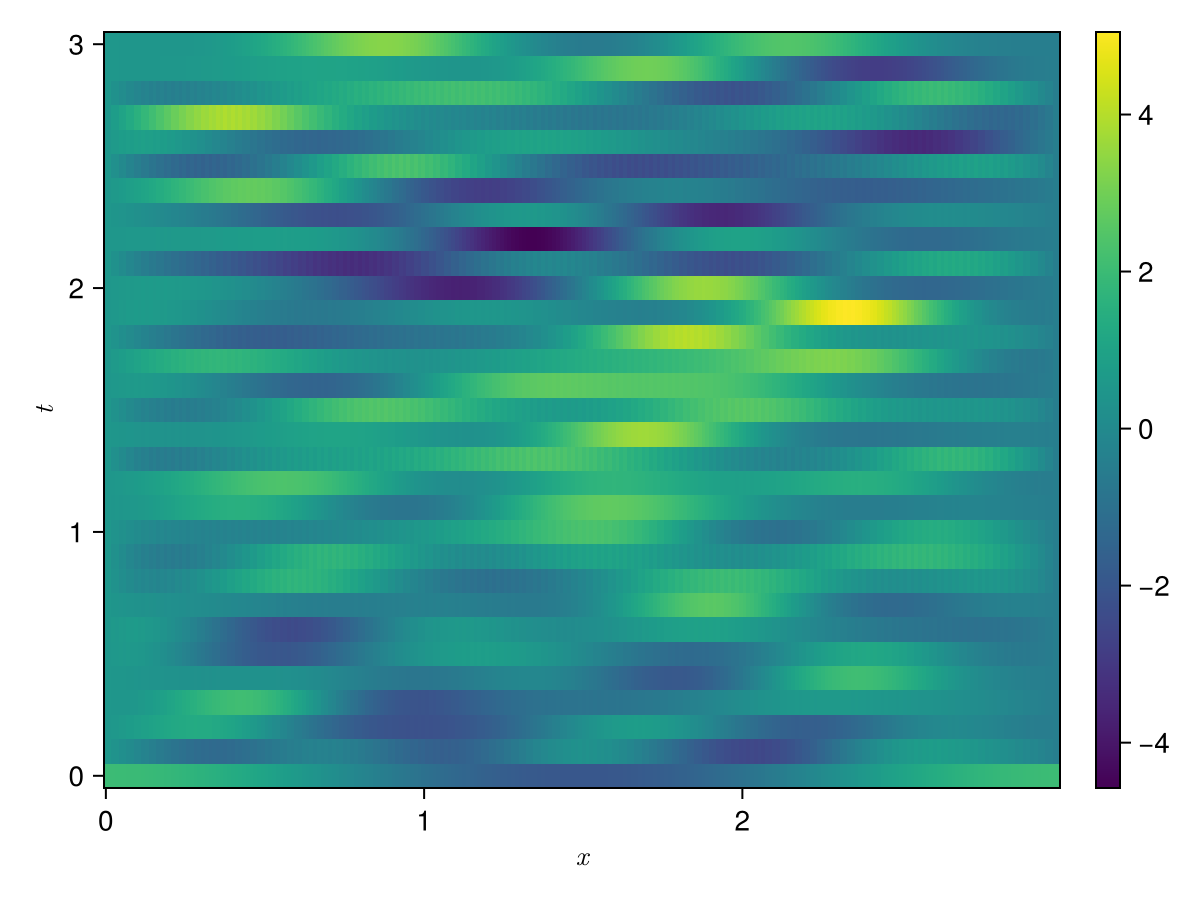

# Flow field
fig4, ax, hm = CairoMakie.heatmap(mKdV.xspan, mKdV.tspan[1:DS:end], U[:, 1:DS:end])
ax.xlabel = L"x"
ax.ylabel = L"t"
CairoMakie.Colorbar(fig4[1, 2], hm)
fig4

API
PolynomialModelReductionDataset.ModifiedKortewegDeVries.ModifiedKortewegDeVriesModel
— Typemutable struct ModifiedKortewegDeVriesModel <: AbstractModel
Modified Korteweg-de Vries equation model
\[\frac{\partial u}{\partial t} = -\alpha\frac{\partial^3 u}{\partial x^3} - \beta u^2\frac{\partial u}{\partial x}\]
Fields
spatial_domain::Tuple{Real,Real}
: spatial domaintime_domain::Tuple{Real,Real}
: temporal domainparam_domain::Tuple{Real,Real}
: parameter domainΔx::Real
: spatial grid sizeΔt::Real
: temporal step sizeBC::Symbol
: boundary conditionIC::Array{Float64}
: initial conditionxspan::Vector{Float64}
: spatial grid pointstspan::Vector{Float64}
: temporal pointsspatial_dim::Int64
: spatial dimensiontime_dim::Int64
: temporal dimensionparams::Union{Real,AbstractArray{<:Real}}
: parameter vectorparam_dim::Int64
: parameter dimensionfinite_diff_model::Function
: model using Finite Differenceintegrate_model::Function
: model integration
PolynomialModelReductionDataset.ModifiedKortewegDeVries
— ModuleModified Korteweg-de Vries (mKdV) equation
PolynomialModelReductionDataset.ModifiedKortewegDeVries.finite_diff_dirichlet_model
— Methodfinite_diff_dirichlet_model(N, Δx, Δt, params)
Finite Difference Model for the Gardner equation with Dirichlet boundary condition (Non-conservative).
PolynomialModelReductionDataset.ModifiedKortewegDeVries.finite_diff_model
— Methodfinite_diff_model(model, params)
Finite Difference Model for mKdV equation
Arguments
model::ModifiedKortewegDeVriesModel
: mKdV modelparams::Real
: params including a, b, c
Returns
- operators
PolynomialModelReductionDataset.ModifiedKortewegDeVries.finite_diff_periodic_model
— Methodfinite_diff_periodic_model(N, Δx, params)
Generate A and E matrices for the Gardner equation for periodic boundary condition (Non-conservative).
PolynomialModelReductionDataset.ModifiedKortewegDeVries.integrate_model
— Methodintegrate_model(tdata, u0)
integrate_model(tdata, u0, input; kwargs...)
Integrate the mKdV model using the Semi-Implicit Euler (SIE) or Crank-Nicolson Adam-Bashforth (CNAB) scheme with or without control.
Arguments
tdata::AbstractArray{T}
: time datau0::AbstractArray{T}
: initial conditioninput::AbstractArray{T}=[]
: input data
Keyword Arguments
linear_matrix::AbstractArray{T,2}
: linear matrixcubic_matrix::AbstractArray{T,2}
: cubic matrixcontrol_matrix::AbstractArray{T,2}
: control matrixsystem_input::Bool=false
: system input flagconst_stepsize::Bool=false
: constant step size flagu3_jm1::AbstractArray{T,2}
: cubic matrix at j-1integrator_type::Symbol=:CNAB
: integrator type
Returns
u::Array{T,2}
: integrated model states
Notes
- If
system_input
is true, the input data is assumed to be a matrix of size (spatial dimension x time dimension). - If
const_stepsize
is true, the time step size is assumed to be constant. - If
u3_jm1
is provided, the cubic matrix at j-1 is used in the CNAB scheme. - The integrator type can be either
:SIE
for Semi-Implicit Euler or:CNAB
for Crank-Nicolson Adam-Bashforth.
PolynomialModelReductionDataset.ModifiedKortewegDeVries.integrate_model_with_control_CNAB
— Methodintegrate_model_with_control_CNAB(
tdata,
u0,
input;
linear_matrix,
cubic_matrix,
control_matrix,
const_stepsize,
u3_jm1
)
Crank-Nicolson Adam-Bashforth (CNAB) scheme with control
PolynomialModelReductionDataset.ModifiedKortewegDeVries.integrate_model_with_control_SIE
— Methodintegrate_model_with_control_SIE(
tdata,
u0,
input;
linear_matrix,
cubic_matrix,
control_matrix
)
Semi-Implicit Euler (SIE) scheme with control
PolynomialModelReductionDataset.ModifiedKortewegDeVries.integrate_model_without_control_CNAB
— Methodintegrate_model_without_control_CNAB(
tdata,
u0;
linear_matrix,
cubic_matrix,
const_stepsize,
u3_jm1
)
Crank-Nicolson Adam-Bashforth (CNAB) scheme without control
PolynomialModelReductionDataset.ModifiedKortewegDeVries.integrate_model_without_control_SIE
— Methodintegrate_model_without_control_SIE(
tdata,
u0;
linear_matrix,
cubic_matrix
)
Semi-Implicit Euler (SIE) scheme without control
