Kuramoto-Sivashinsky Equation
Overview
The Kuramoto-Sivashinsky (KS) equation is a partial differential equation that describes the dynamics of certain spatiotemporal patterns in various physical systems, particularly in fluid dynamics and combustion processes. It was introduced by Yoshiki Kuramoto and Grigoriĭ Isaakovich Sivashinsky independently in the 1970s.
The equation is given by:
\[\begin{gather*} u_t + uu_x + u_{xx} + \mu u_{xxxx} = 0, \qquad x \in (-\infty, \infty) \\ u(x,t) = u(x+L,t), \quad u_x(x,t) = u_x(x+L,t), \quad t \geq 0 \end{gather*}\]
where:
- $u(x, t)$ represents the spatially and temporally varying quantity being modeled (e.g., the amplitude of certain patterns in a fluid or combustion system).
- $t$ is time.
- $x$ is a spatial coordinate.
The terms in the equation have the following meanings:
- $u_t$: Represents the time rate of change of the quantity u.
- $uu_x$: Represents advection, describing how the quantity u is transported along the spatial coordinate x by its own gradient.
- $u_{xx}$: Represents diffusion, describing how the quantity u diffuses or spreads out over space.
- $u_{xxxx}$: Represents a fourth-order spatial derivative that accounts for certain nonlinear interactions and dispersion effects.
- $\mu$: Viscosity parameter.
The Kuramoto-Sivashinsky equation is known for producing a rich variety of complex spatiotemporal patterns, including traveling waves, oscillations, and turbulence-like behavior. It has applications in understanding and modeling various physical phenomena, such as the dynamics of flames, fluid interfaces, and certain chemical reactions. The equation's complexity and the diversity of patterns it can exhibit make it a subject of study in nonlinear dynamics and chaos theory.
Model
For our analysis, we will construct a numerical model by descretizing the original PDE and separating the system into the linear and nonlinear components in the form of
\[\begin{gather*} \dot{\mathbf u}(t) = \mathbf A \mathbf u(t) + \mathbf F \mathbf u^{\langle 2\rangle}(t) \end{gather*}\]
where $\mathbf A$, $\mathbf F$ are the linear and quadratic (non-redundant) operators respectively.
Currently, only the periodic boundary condition is implemented for the KS equation. Hence, we disregard the control input.
Numerical Integration
Once we have the numerical model, we integrate it using the Crank-Nicolson and Adam-Bashforth Implicit scheme. The method is as follows.
\[\begin{gather*} \frac{\mathbf u(t_{k+1}) - \mathbf u(t_k)}{\Delta t} = \mathbf A \left(\frac{\mathbf u(t_{k+1}) + \mathbf u(t_k)}{2}\right) + \left[ \frac{3}{2}\mathbf F \left( \mathbf u(t_k) \right)^{\langle 2\rangle} -\frac{1}{2}\mathbf F\left( \mathbf{u}(t_{k-1}) \right)^{\langle 2 \rangle } \right] \end{gather*}\]
Hence
\[\begin{gather*} \mathbf u(t_{k+1}) = \begin{cases} \left(\mathbf I - \frac{\Delta t}{2}\mathbf A \right)^{-1}\left[ \left( \mathbf I + \frac{\Delta t}{2}\mathbf A \right)\mathbf u(t_k) + \Delta t\mathbf F \left( \mathbf u(t_k) \right)^{\langle 2\rangle} \right] \qquad k = 1 \\[0.3cm] \left(\mathbf I - \frac{\Delta t}{2}\mathbf A \right)^{-1}\left[ \left( \mathbf I + \frac{\Delta t}{2}\mathbf A \right)\mathbf u(t_k) + \frac{3\Delta t}{2}\mathbf F \left( \mathbf u(t_k) \right)^{\langle 2\rangle} -\frac{\Delta t}{2}\mathbf F\left( \mathbf u(t_{k-1}) \right)^{\langle 2 \rangle }\right] \qquad k \geq 2 \end{cases} \end{gather*}\]
Finite Difference Model
Similar to the discretization of the 1D Heat equation, viscous Burgers' equation, and etc. we discretize the PDE using finite difference approach. In order to discretize in the spatial and temporal domains we define the grid size $\Delta x$ and time-step $\Delta t$. Furthermore, let the subscript and superscript indicate the spatial and temporal indices respectively, i.e., $u_{n}^k$. Then we show how we discretize each term below.
\[\begin{align*} u_{xxxx} &\approx \frac{1}{\Delta x^4} \left( u_{n+2} - 4u_{n+1} + 6u_n - 4u_{n-1} + u_{n-2} \right) \\ u_{xx} &\approx \frac{1}{\Delta x^2} \left( u_{n+1} - 2u_n + u_{n-1} \right) \\ u_x &\approx \frac{1}{2\Delta x} \left( u_{n+1} - u_{n-1} \right) \quad . \end{align*}\]
Then we can represent the KS equation model with distinct linear and nonlinear terms
\[\begin{gather*} \dot u_n = \underbrace{ \left[ -\frac{\mu}{\Delta x^4} (u_{n+2} + u_{n-2}) + \left( \frac{4\mu}{\Delta x^4}-\frac{1}{\Delta x^2} \right)(u_{n+1} + u_{n-1}) + \left( \frac{2}{\Delta x^2}-\frac{6\mu}{\Delta x^4} \right)u_n \right] }_{\text{linear}} + \underbrace{\frac{1}{2\Delta x}\left( u_nu_{n-1} - u_nu_{n+1} \right)}_{\text{nonlinear}} \end{gather*}\]
Thus, assuming we have periodic boundary conditions, we can represent the KS equation as a linear-quadratic ODE with respect to time by expanding the above expression to all of the spatial grid:
\[\begin{gather*} \mathbf{\dot u}(t) = \mathbf{A}\mathbf u(t) + \mathbf{F} \mathbf u^{\langle 2 \rangle}(t) \end{gather*}\]
where $\mathbf A \in \mathbb R^{N\times N}$ is the linear operator, $\mathbf F \in \mathbb R^{N \times N(N+1)/2}$ is the quadratic operator, and $\mathbf u^{\langle 2\rangle} \in \mathbb R^{N(N+1)/2}$ represents the quadratic states with no redundancy. The matrix $\mathbf A$ would be a toeplitz matrix (except for the periodic terms) and the $\mathbf F$ would be a sparse matrix.
Spectral Method
We consider a periodic domain $[0,L]$ for the solution of the Kuramoto-Sivashinsky equation. Our periodic grid has $N$ points $\{x_n\}_{n=1}^N$, where $x_n = n\Delta x$ and $\Delta x = L/N$. With $N$ degrees of freedom we can write the solution $u(x,t)$ as a truncated Fourier expansion with $N$ modes:
\[\begin{align*} u(x,t) = \int_{-\infty}^\infty \hat u_k(t)\exp\left(\frac{2\pi j kx}{L}\right)dk \approx \sum_{k=-N/2}^{N/2-1}\hat{u}_k(t)\exp\left(\frac{2\pi jkx}{L}\right). \end{align*}\]
Now from here, we introduce two possible methods using the Fourier transform. The first method, uses the Fast Fourier Transform (FFT) or Pseudo-Spectral (PS) method to deal with the nonlinear term. In contrast, the second method directly uses the Fourier Mode by formulating the problem with the Spectral Galerkin (SG) method.
Pseudo-Spectral Method
We begin by plugging the approximate Fourier transform of $u(x,t)$ back into the original PDE which give us
\[\begin{align*} \dot u(x,t) &\approx \sum_{k=-N/2}^{N/2-1} \dot{\hat u_k}(t)\exp\left( \frac{2\pi jkx}{L} \right) \\ \mu u_{xxxx} + u_{xx} &\approx \sum_{k=-N/2}^{N/2-1}\mu\left( \frac{2\pi j k}{L} \right)^4 \hat u_k(t) \exp\left( \frac{2\pi j k x}{L} \right) + \sum_{k=-N/2}^{N/2-1}\left( \frac{2\pi j k}{L} \right)^2 \hat u_k(t) \exp\left( \frac{2\pi j kx}{L} \right) = -\sum_{k=-N/2}^{N/2-1} \left[ \left( \frac{2\pi k}{L} \right)^2 - \mu\left( \frac{2\pi k}{L} \right)^4 \right] \hat u_k(t) \exp\left( \frac{2\pi j kx}{L} \right) \\ uu_x &= \frac{1}{2}\left( u^2 \right)_x \approx \frac{1}{2} \frac{2\pi j k}{L}\left( \hat u^2 \right)_k = \frac{1}{2} \frac{2\pi j k }{L} ~\left(\mathrm{FFT}\left[ u^2(t) \right]\right)_k \end{align*}\]
Then if we collect the terms within the summation and multiplied by $\exp(2\pi jk x/L )$ we have
\[\begin{gather*} \dot{\hat u}_k(t) = \underbrace{\left[ \left( \frac{2\pi k}{L}\right)^2 - \mu\left( \frac{2\pi k}{L} \right)^4 \right]\hat u_k(t)}_{\text{linear}} - \underbrace{\frac{\pi j k}{L}~\left(\mathrm{FFT}\left[ u^2(t) \right]\right)_k}_{\text{nonlinear}} \end{gather*}\]
For more detail on the derivation, refer to this paper by Gentian Zavalani. If we write this in the form of $\mathbf{\dot u}(t) = \mathbf{A}\mathbf u(t) + \mathbf{F} \mathbf u^{\langle 2 \rangle}(t)$ we will have a diagonal matrix of $\mathbf A$ and for $\mathbf F$. The original states $u(t)$ of the KS equation can be retained by performing the inverse FFT (iFFT) on the states $\hat u(t)$.
Or you could let $\mathbf A$ and $\mathbf F$ be a vector and do element-wise multiplications to speed-up the integration process.
Spectral Galerkin (SG) Method
In the SG method, you take the inner product between the Fourier transformed expression and the exponential to retrieve the Fourier coefficient with the orthogonality condition. For example, for the $-u_{xx}$ term
\[\begin{align*} \left\langle -\partial_x u, \partial_x u\right\rangle &= \left\langle -\partial_x \sum_{l=-N/2}^{N/2-1}\hat u_l(t) \exp\left(\frac{2\pi j l}{L}x\right), ~\partial_x\exp\left( \frac{2\pi j k}{L}x\right) \right\rangle \\ &= \left\langle - \sum_{l=-N/2}^{N/2-1} \frac{2\pi j l}{L} \hat u_l(t) \exp\left(\frac{2\pi j l}{L}x\right), ~ \frac{2\pi jk}{L} \exp\left( \frac{2\pi j k}{L}x\right) \right\rangle \\ &{\xrightarrow{l=k}} \left( \frac{2\pi k }{L} \right)^2 \hat u_k(t) \end{align*}\]
For $u_{xxxx}$ we obtain the same expression as the previous pseudo-spectral method, and therefore, the linear part of the model is exactly the same. However, we take a different route for the nonlinear term. If we consider the conservative advection nonlinearity, the spectral Galerkin would be as follows.
\[\begin{align*} \left\langle -\frac{1}{2}u^2, ~\partial_x\exp\left( \frac{2\pi jk}{L}x\right)\right\rangle &= \left\langle -\frac{1}{2}\left[\sum_{p=-N/2}^{N/2-1}\hat u_p(t) \exp\left(\frac{2\pi j p}{L}x\right)\right]\left[\sum_{q=-N/2}^{N/2-1}\hat u_q(t) \exp\left(\frac{2\pi j q}{L}x\right) \right], ~\frac{2\pi jk}{L}\exp\left( \frac{2\pi jk}{L} \right) \right\rangle \\ &=\left\langle -\frac{1}{2} \sum_{p=-N/2}^{N/2-1}\sum_{q=-N/2}^{N/2-1}\hat u_p(t) \hat u_q(t) \exp\left[\frac{2\pi j (p+q)}{L}x\right], ~\frac{2\pi jk}{L}\exp\left( \frac{2\pi jk}{L} \right) \right\rangle \\ &\xrightarrow{p+q~=~k} -\frac{\pi jk}{L}\sum_{p+q=k} \hat u_p(t) \hat u_q(t) \end{align*}\]
With the linear and nonlinear terms together, we have
\[\begin{gather*} \dot{\hat u}_k(t) = \underbrace{\left[ \left( \frac{2\pi k}{L}\right)^2 - \mu\left( \frac{2\pi k}{L} \right)^4 \right]}_{\text{linear}}\hat u_k(t) + \underbrace{\frac{-\pi jk}{L} \sum_{p+q=k}\hat u_p(t) \hat u_q(t)}_{\text{nonlinear}} ~ . \end{gather*}\]
Assume $\hat u_k$ is pure imaginary. Then let us define $\hat u_k(t) = j\hat v_k(t)$, where $v_k(t) \in \mathbb R^N$, to limit the model in the real space, which brings us to
\[\begin{gather*} \dot{\hat v}_k(t) = \underbrace{\left[ \left( \frac{2\pi k}{L}\right)^2 - \mu\left( \frac{2\pi k}{L} \right)^4 \right]\hat v_k(t)}_{\text{linear}} + \underbrace{\frac{-\pi k}{L} \sum_{p+q=k}\hat v_p(t) \hat v_q(t)}_{\text{nonlinear}} \quad . \end{gather*}\]
Thus, in the real Fourier space, the model can be expressed as
\[\begin{gather*} \dot{\hat{\mathbf{v}}}(t) = \mathbf{A}\hat{\mathbf v}(t) + \mathbf{F} \hat{\mathbf v}^{\langle 2 \rangle}(t) \quad . \end{gather*}\]
Now, since the Fourier transform $\mathcal F$ is a linear operator, so is the inverse Fourier transform $\mathcal F^{-1}$. Hence, the KS model in the time domain is expressed as
\[\begin{gather*} \mathcal F^{-1}\left[ \dot{\hat{\mathbf{v}}}(t) \right] = \mathbf{A}~\mathcal F^{-1} \left[\hat{\mathbf v}(t)\right] + \mathbf{F} ~\mathcal F^{-1}\left[\hat{\mathbf v}^{\langle 2 \rangle}(t) \right] \quad . \end{gather*}\]
where the linear and quadratic operators do not change. For more details consult this paper.
However if we would not want to assume $\hat u_k$ to be pure imaginary then we will just let
\[\begin{gather*} \dot{\hat{\mathbf{u}}}(t) = \mathbf{A}\hat{\mathbf u}(t) + \mathbf{F} \hat{\mathbf u}^{\langle 2 \rangle}(t) \quad , \end{gather*}\]
where $\mathbf F$ would have complex valued entries. To acquire the original states $u(t)$ of the KS equation we will have to perform the inverse FFT (iFFT) on the state data in the Fourier space.
Example
For this example, we follow the setup by Koike and Qian [3].
using CairoMakie
using LinearAlgebra
using PolynomialModelReductionDataset: KuramotoSivashinskyModel
# Settings for the KS equation
Ω = (0.0, 22.0)
dt = 0.01
N = 256
kse = KuramotoSivashinskyModel(
spatial_domain=Ω, time_domain=(0.0, 300.0), diffusion_coeffs=1.0,
Δx=(Ω[2] - 1/N)/N, Δt=dt
)
DS = 100
L = kse.spatial_domain[2]
# Initial condition
a = 1.0
b = 0.1
u0 = a*cos.((2*π*kse.xspan)/L) + b*cos.((4*π*kse.xspan)/L)
# Operators
A, F = kse.finite_diff_model(kse, kse.diffusion_coeffs)
# Integrate
U = kse.integrate_model(kse.tspan, u0, nothing; linear_matrix=A, quadratic_matrix=F, const_stepsize=true)

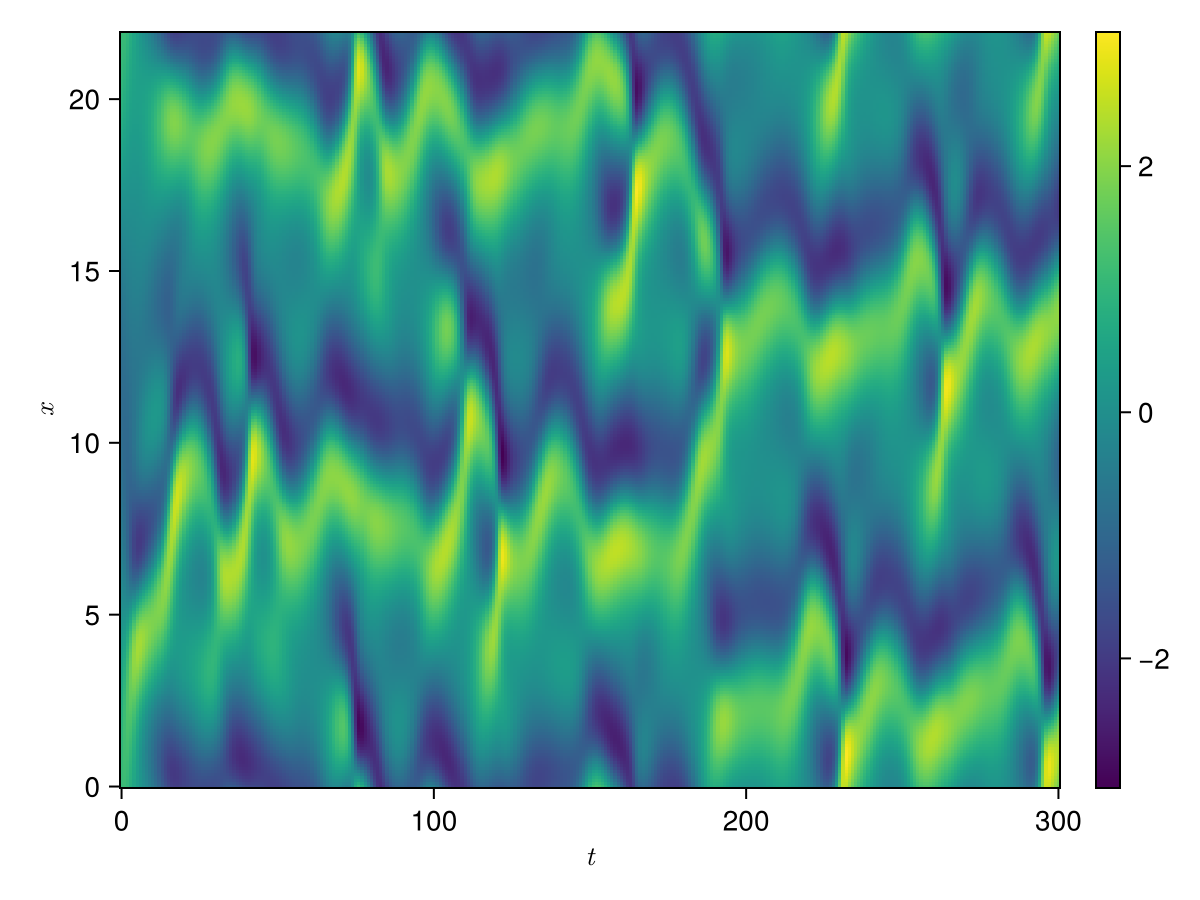

# Heatmap
fig1, ax, hm = CairoMakie.heatmap(kse.tspan[1:DS:end], kse.xspan, U[:, 1:DS:end]')
ax.xlabel = L"t"
ax.ylabel = L"x"
CairoMakie.Colorbar(fig1[1, 2], hm)
fig1

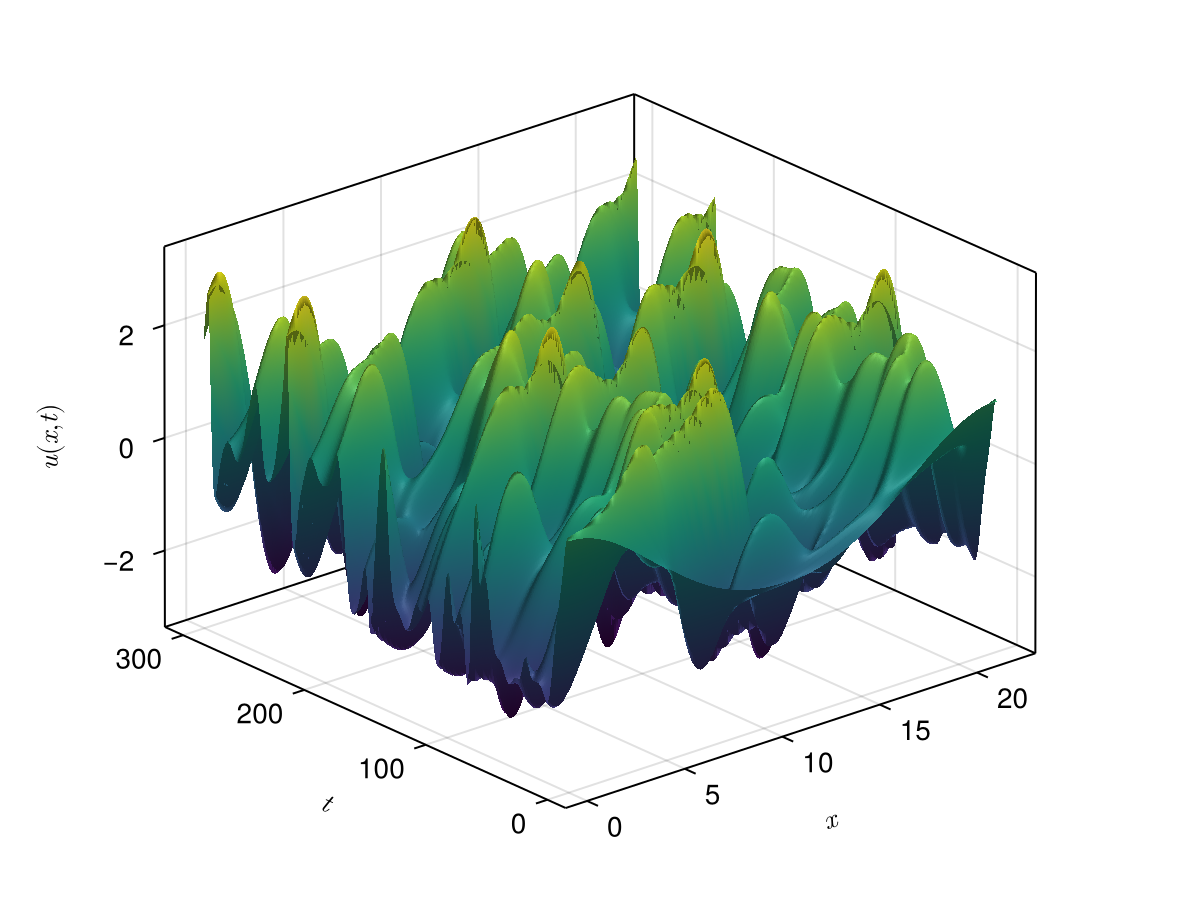

# Surface plot
fig11, _, sf = CairoMakie.surface(kse.xspan, kse.tspan[1:DS:end], U[:, 1:DS:end],
axis=(type=Axis3, xlabel=L"x", ylabel=L"t", zlabel=L"u(x,t)"))
CairoMakie.Colorbar(fig1[1, 2], sf)
fig11

API
PolynomialModelReductionDataset.KuramotoSivashinsky.KuramotoSivashinskyModel
— Typemutable struct KuramotoSivashinskyModel <: AbstractModel
Kuramoto-Sivashinsky equation model
\[\frac{\partial u}{\partial t} = -\mu\frac{\partial^4 u}{\partial x^4} - \frac{\partial^2 u}{\partial x^2} - u\frac{\partial u}{\partial x}\]
where $u$ is the state variable and $\mu$ is the viscosity coefficient.
Fields
spatial_domain::Tuple{Real,Real}
: spatial domaintime_domain::Tuple{Real,Real}
: temporal domainparam_domain::Tuple{Real,Real}
: parameter domainΔx::Real
: spatial grid sizeΔt::Real
: temporal step sizeBC::Symbol
: boundary conditionIC::Array{Float64}
: initial conditionxspan::Vector{Float64}
: spatial grid pointstspan::Vector{Float64}
: temporal pointsdiffusion_coeffs::Union{Real,AbstractArray{<:Real}}
: parameter vectorfourier_modes::Vector{Float64}
: Fourier modesspatial_dim::Int64
: spatial dimensiontime_dim::Int64
: temporal dimensionparam_dim::Int64
: parameter dimensionconservation_type::Symbol
: conservation typemodel_type::Symbol
: model typefinite_diff_model::Function
: finite difference modelpseudo_spectral_model::Function
: pseudo spectral modelelementwise_pseudo_spectral_model::Function
: element-wise pseudo spectral modelspectral_galerkin_model::Function
: spectral Galerkin modelintegrate_model::Function
: integratorjacobian::Function
: Jacobian matrix
PolynomialModelReductionDataset.KuramotoSivashinsky
— ModuleKuramoto-Sivashinsky (KSE) model
PolynomialModelReductionDataset.KuramotoSivashinsky.elementwise_pseudo_spectral_model
— Methodelementwise_pseudo_spectral_model(model, μ)
Generate A, F matrices for the Kuramoto-Sivashinsky equation using the Fast Fourier Transform method (element-wise).
Arguments
model
: Kuramoto-Sivashinsky equation modelμ
: parameter value
Returns
A
: A matrixF
: F matrix
PolynomialModelReductionDataset.KuramotoSivashinsky.finite_diff_model
— Methodfinite_diff_model(model, μ)
Finite Difference Model for the Kuramoto-Sivashinsky equation.
Arguments
model::KuramotoSivashinskyModel
: Kuramoto-Sivashinsky equation modelμ::Real
: parameter value
Returns
A
: A matrixF
: F matrix
PolynomialModelReductionDataset.KuramotoSivashinsky.finite_diff_periodic_conservative_model
— Methodfinite_diff_periodic_conservative_model(N, Δx, μ)
Finite Difference Model for the Kuramoto-Sivashinsky equation with periodic boundary condition.
PolynomialModelReductionDataset.KuramotoSivashinsky.finite_diff_periodic_energy_preserving_model
— Methodfinite_diff_periodic_energy_preserving_model(N, Δx, μ)
Finite Difference Model for the Kuramoto-Sivashinsky equation with periodic boundary condition.
PolynomialModelReductionDataset.KuramotoSivashinsky.finite_diff_periodic_nonconservative_model
— Methodfinite_diff_periodic_nonconservative_model(N, Δx, μ)
Finite Difference Model for the Kuramoto-Sivashinsky equation with periodic boundary condition.
PolynomialModelReductionDataset.KuramotoSivashinsky.integrate_elementwise_pseudo_spectral_model
— Methodintegrate_elementwise_pseudo_spectral_model(
tdata,
IC,
args;
kwargs...
)
Integrator using Crank-Nicholson Adams-Bashforth method for (FFT) (element-wise)
Arguments
tdata
: temporal pointsIC
: initial condition
Keyword Arguments
linear_matrix
: linear matrixquadratic_matrix
: quadratic matrix
Returns
u
: state matrixuhat
: state matrix in the Fourier space
PolynomialModelReductionDataset.KuramotoSivashinsky.integrate_finite_diff_model
— Methodintegrate_finite_diff_model(tdata, IC, args; kwargs...)
Integrator using Crank-Nicholson Adams-Bashforth method for (FD).
Arguments
tdata
: temporal pointsIC
: initial condition
Keyword Arguments
linear_matrix
: linear matrixquadratic_matrix
: quadratic matrixconst_stepsize
: whether to use a constant time step sizeu2_jm1
: u2 at j-1
Returns
u
: state matrix
PolynomialModelReductionDataset.KuramotoSivashinsky.integrate_pseudo_spectral_model
— Methodintegrate_pseudo_spectral_model(tdata, IC, args; kwargs...)
Integrator using Crank-Nicholson Adams-Bashforth method for (FFT)
Arguments
tdata
: temporal pointsIC
: initial condition
Keyword Arguments
linear_matrix
: linear matrixquadratic_matrix
: quadratic matrix
Returns
u
: state matrixuhat
: state matrix in the Fourier space
PolynomialModelReductionDataset.KuramotoSivashinsky.integrate_spectral_galerkin_model
— Methodintegrate_spectral_galerkin_model(
tdata,
IC,
args;
kwargs...
)
Integrator for model produced with Spectral-Galerkin method.
Arguments
tdata
: temporal pointsIC
: initial condition
Keyword Arguments
linear_matrix
: linear matrixquadratic_matrix
: quadratic matrix
Returns
u
: state matrixuhat
: state matrix in the Fourier space
PolynomialModelReductionDataset.KuramotoSivashinsky.jacobian
— Methodjacobian(x; kwargs...)
Generate Jacobian matrix
Arguments
x
: state
Keyord Arguments
linear_matrix
: linear matrixquadratic_matrix
: quadratic matrix
Returns
J
: Jacobian matrix
PolynomialModelReductionDataset.KuramotoSivashinsky.pseudo_spectral_model
— Methodpseudo_spectral_model(model, μ)
Generate A, F matrices for the Kuramoto-Sivashinsky equation using the Pseudo-Spectral/Fast Fourier Transform method.
Arguments
model
: Kuramoto-Sivashinsky equation modelμ
: parameter value
Returns
A
: A matrixF
: F matrix (take out 1.0im)
PolynomialModelReductionDataset.KuramotoSivashinsky.spectral_galerkin_model
— Methodspectral_galerkin_model(model, μ)
Generate A, F matrices for the Kuramoto-Sivashinsky equation using the Spectral-Galerkin method.
Arguments
model
: Kuramoto-Sivashinsky equation modelμ
: parameter value
Returns
A
: A matrixF
: F matrix
