Allen-Cahn equation

Overview

The Allen-Cahn equation is a fundamental partial differential equation (PDE) in the field of mathematical physics and materials science. Introduced by Samuel Allen and John W. Cahn in 1979, it models the process of phase separation in multi-component alloy systems, particularly the evolution of interfaces between different phases in a material.

The Allen-Cahn equation is typically written as:

\[u_t = \Delta u - F'(u)\]

  • $u(x,t)$: represents a scalar field, often associated with the order parameter or concentration difference between two phases at position $x$ and time $t$.
  • $\Delta$: denotes the Laplacian operator, representing diffusion in space.
  • $F(u)$: A double-well potential function, commonly chosen as $F(u) = \frac{1}{4}(u^2 - 1)^2$. The derivative $F'(u)=u^3-u$ represents the reaction term driving the phase separation.

Physical Interpretation

  • Phase Separation: the equation models how a homogeneous mixture evolves into distinct phases over time, a process driven by minimization of the system's free energy.
  • Interface Dynamics: it describes the motion of interfaces (or domain walls) between different phases, influenced by surface tension and curvature effects.

Some properties

  1. Gradient Flow: the Allen-Cahn equation is the $L_2$-gradient flow of the Ginzburg-Landau energy functional:

    \[E(u) = \int \left( \frac{1}{2}|\nabla u|^2 + F(u) \right)dx\]

    This means the evolution of $u$ seeks to decrease the energy $E(u)$ over time.

  2. Connection to Mean Curvature Flow: in the sharp interface limit (when the interface thickness tends to zero), the motion of the interface approximates mean curvature flow. This links the Allen-Cahn equation to geometric PDEs and has significant implications in differential geometry.

  3. Metastability: the equation exhibits metastable behavior, where solutions can remain in unstable equilibrium states for extended periods before transitioning to a stable configuration.

Model

The Allen-Cahn equation becomes a cubic model:

\[\dot{\mathbf{u}}(t) = \mathbf{Au}(t) + \mathbf{G}(\mathbf{u}(t) \otimes \mathbf{u}(t) \otimes \mathbf{u}(t)) + \mathbf{Bw}(t)\]

or

\[\dot{\mathbf{u}}(t) = \mathbf{Au}(t) + \mathbf{E}(\mathbf{u}(t) \oslash \mathbf{u}(t) \oslash \mathbf{u}(t)) + \mathbf{Bw}(t)\]

where

  • $\mathbf{u}\in\mathbb{R}^N$: the state vector
  • $\mathbf{w}\in\mathbb{R}^m$: the input vector
  • $\mathbf{A}\in\mathbb{R}^{N\times N}$: the linear state matrix
  • $\mathbf{G}\in\mathbb{R}^{N\times N^3}$: the cubic state matrix with redundancy
  • $\mathbf{E}\in\mathbb{R}^{N\times N(N+1)(N+2)/6}$: the cubic state matrix without redundancy
  • $\mathbf{B}\in\mathbb{R}^{N\times m}$: the control input matrix

Numerical Integration

For the numerical integration we consider two methods:

  • Semi-Implicit Crank-Nicolson (SICN)
  • Crank-Nicolson Adam-Bashforth (CNAB)

The time stepping for each methods are

SICN:

\[\mathbf{u}(t_{k+1}) = \left(\mathbf{I}-\frac{\Delta t}{2}\mathbf{A}\right)^{-1} \left\{ \left( \mathbf{I} + \frac{\Delta t}{2}\mathbf{A} \right)\mathbf{u}(t_k) + \Delta t\mathbf{E}\mathbf{u}^{\langle 3\rangle}(t_k) + \frac{\Delta t}{2} \mathbf{B}\left[ \mathbf{w}(t_{k+1}) + \mathbf{w}(t_k) \right]\right\}\]

CNAB:

If $k=1$

\[\mathbf{u}(t_{k+1}) = \left(\mathbf{I}-\frac{\Delta t}{2}\mathbf{A}\right)^{-1} \left\{ \left( \mathbf{I} + \frac{\Delta t}{2}\mathbf{A} \right)\mathbf{u}(t_k) + \Delta t\mathbf{E}\mathbf{u}^{\langle 3\rangle}(t_k) + \frac{\Delta t}{2} \mathbf{B}\left[ \mathbf{w}(t_{k+1}) + \mathbf{w}(t_k) \right]\right\}\]

If $k\geq 2$

\[\mathbf{u}(t_{k+1}) = \left(\mathbf{I}-\frac{\Delta t}{2}\mathbf{A}\right)^{-1} \left\{ \left( \mathbf{I} + \frac{\Delta t}{2}\mathbf{A} \right)\mathbf{u}(t_k) + \frac{3\Delta t}{2}\mathbf{E}\mathbf{u}^{\langle 3\rangle}(t_k) - \frac{\Delta t}{2}\mathbf{E}\mathbf{u}^{\langle 3\rangle}(t_{k-1}) + \frac{\Delta t}{2} \mathbf{B}\left[ \mathbf{w}(t_{k+1}) + \mathbf{w}(t_k) \right]\right\}\]

where $\mathbf{u}^{\langle 3 \rangle}=\mathbf{u} \oslash \mathbf{u} \oslash \mathbf{u}$.

!!! Note Please go over the derivations in 1D heat equation and Viscous Burgers' equation for details on how to construct each operators.

Example

using CairoMakie
using LinearAlgebra
using PolynomialModelReductionDataset: AllenCahnModel

# Setup
Ω = (-1.0, 1.0)
T = (0.0, 3.0)
Nx = 2^8
dt = 1e-3
allencahn = AllenCahnModel(
    spatial_domain=Ω, time_domain=T, Δx=((Ω[2]-Ω[1]) + 1/Nx)/Nx, Δt=dt,
    params=Dict(:μ => 0.001, :ϵ => 1.0), BC=:dirichlet
)
DS = 10
allencahn.IC = 0.53*allencahn.xspan + 0.47*sin.(-1.5π * allencahn.xspan)
Ubc1 = ones(1,allencahn.time_dim)
Ubc2 = -ones(1,allencahn.time_dim)
Ubc = [Ubc1; Ubc2]

# Operators
A, E, B = allencahn.finite_diff_model(allencahn, allencahn.params)

# Integrate
U = allencahn.integrate_model(
    allencahn.tspan, allencahn.IC, Ubc;
    linear_matrix=A, cubic_matrix=E, control_matrix=B,
    system_input=true, integrator_type=:CNAB,
)

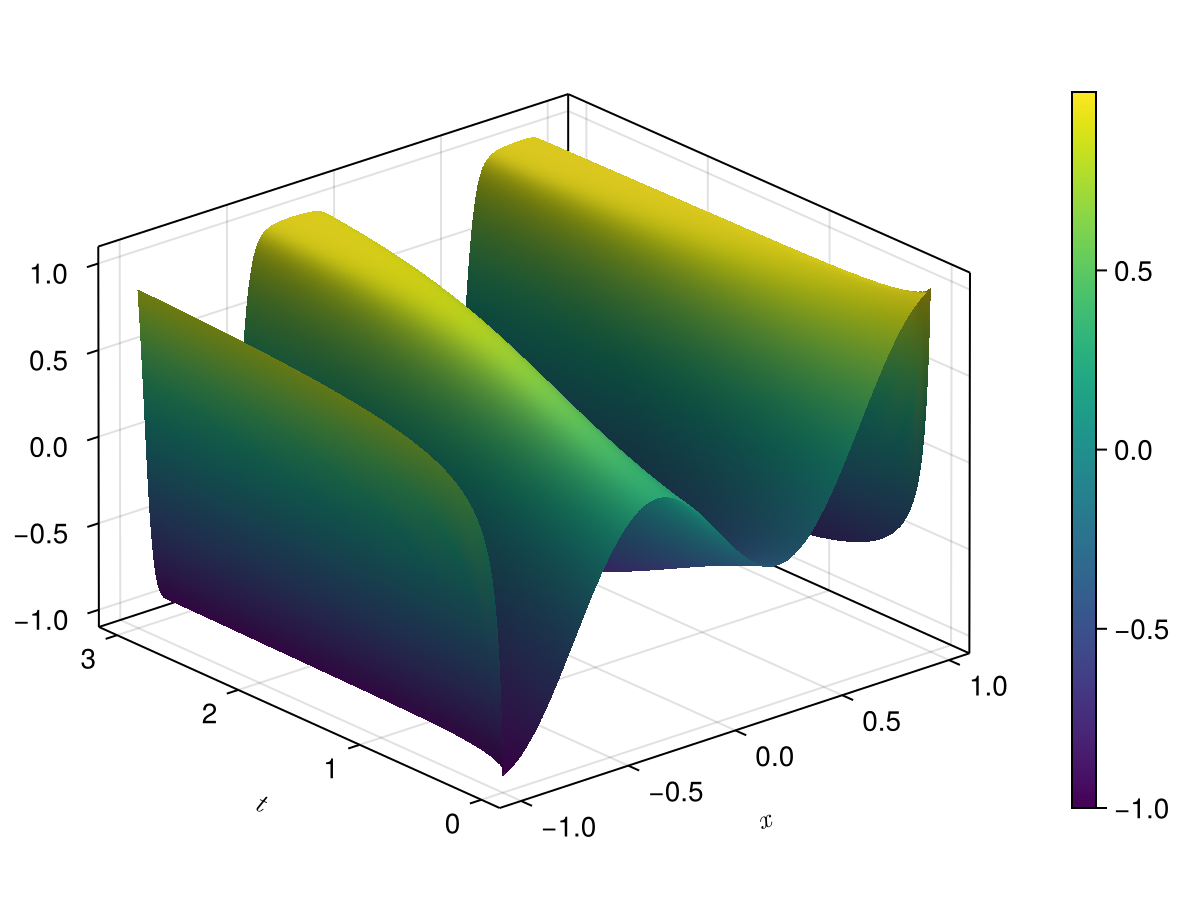

# Surface plot
fig3, _, sf = CairoMakie.surface(allencahn.xspan, allencahn.tspan[1:DS:end], U[:, 1:DS:end],
    axis=(type=Axis3, xlabel=L"x", ylabel=L"t", zlabel=L"u(x,t)"))
CairoMakie.Colorbar(fig3[1, 2], sf)
fig3
Example block output

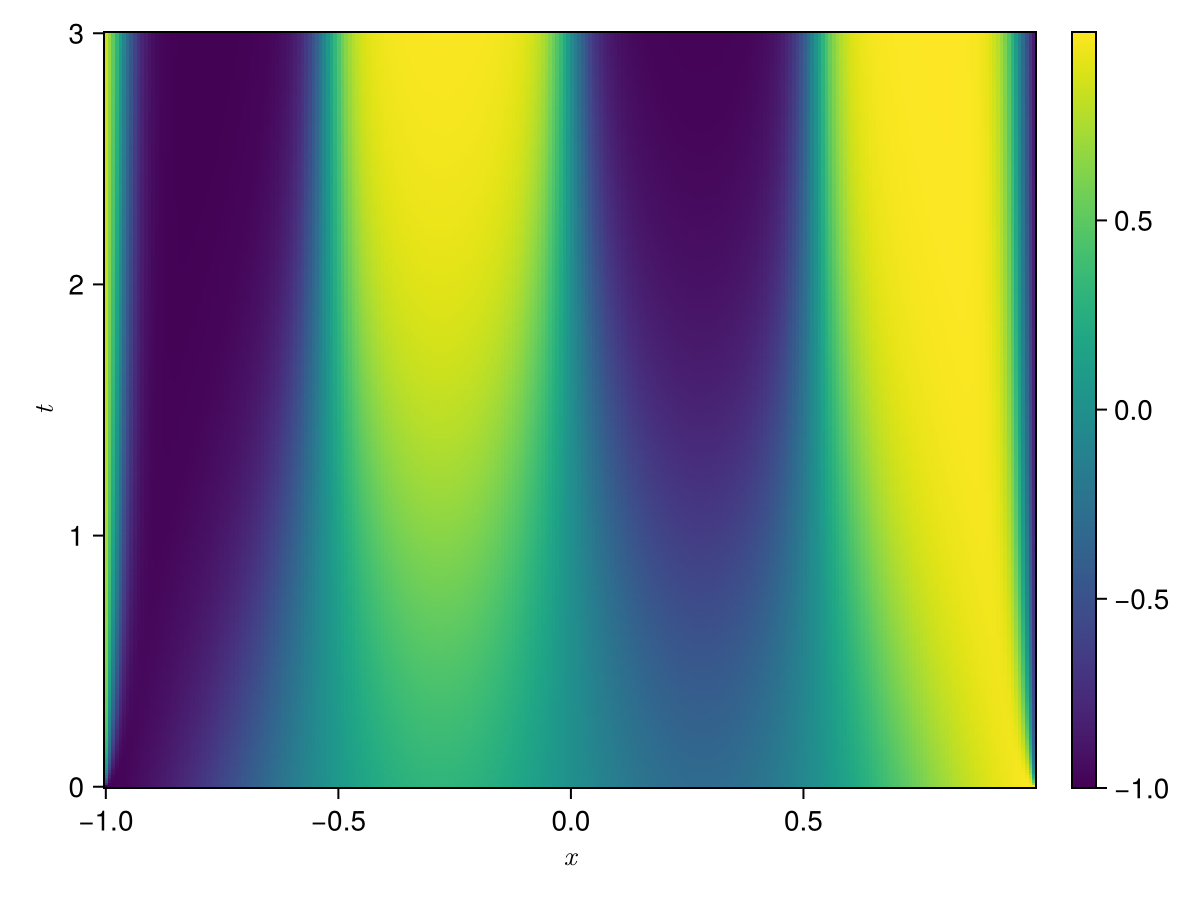

# Flow field
fig4, ax, hm = CairoMakie.heatmap(allencahn.xspan, allencahn.tspan[1:DS:end], U[:, 1:DS:end])
ax.xlabel = L"x"
ax.ylabel = L"t"
CairoMakie.Colorbar(fig4[1, 2], hm)
fig4
Example block output

API

PolynomialModelReductionDataset.AllenCahn.AllenCahnModelType
mutable struct AllenCahnModel <: AbstractModel

Allen-Cahn equation Model

\[\frac{\partial u}{\partial t} = \mu\frac{\partial^2 u}{\partial x^2} - \epsilon(u^3 - u)\]

where $u$ is the state variable, $μ$ is the diffusion coefficient, $ϵ$ is a nonlinear coefficient.

Fields

  • spatial_domain::Tuple{Real,Real}: spatial domain
  • time_domain::Tuple{Real,Real}: temporal domain
  • param_domain::Tuple{Real,Real}: parameter domain (diffusion coeff)
  • Δx::Real: spatial grid size
  • Δt::Real: temporal step size
  • params::Dict{Symbol,Union{Real,AbstractArray{<:Real}}}: parameters
  • xspan::Vector{<:Real}: spatial grid points
  • tspan::Vector{<:Real}: temporal points
  • spatial_dim::Int: spatial dimension
  • time_dim::Int: temporal dimension
  • param_dim::Int: parameter dimension
  • IC::AbstractArray{<:Real}: initial condition
  • BC::Symbol: boundary condition
  • finite_diff_model::Function: model using Finite Difference
  • integrate_model::Function: integrator using Crank-Nicholson (linear) Explicit (nonlinear) method
source
PolynomialModelReductionDataset.AllenCahn.finite_diff_mixed_modelMethod
finite_diff_mixed_model(N, Δx, params)

Create the matrices A (linear operator), B (input operator), and E (cubic operator) for Chafee-Infante model using the mixed boundary condition. If the spatial domain is [0,1], then we assume u(0,t) to be homogeneous dirichlet boundary condition and u(1,t) to be Neumann boundary condition of some function h(t).

Arguments

  • N::Real: spatial dimension
  • Δx::Real: spatial grid size
  • params::Dict: parameters

Returns

  • A::SparseMatrixCSC{Float64,Int}: linear operator
  • B::SparseMatrixCSC{Float64,Int}: input operator
  • E::SparseMatrixCSC{Float64,Int}: cubic operator
source
PolynomialModelReductionDataset.AllenCahn.finite_diff_periodic_modelMethod
finite_diff_periodic_model(N, Δx, params)

Create the matrices A (linear operator) and E (cubic operator) for the Chafee-Infante model.

Arguments

  • N::Real: spatial dimension
  • Δx::Real: spatial grid size
  • params::Dict: parameters

Returns

  • A::SparseMatrixCSC{Float64,Int}: linear operator
  • E::SparseMatrixCSC{Float64,Int}: cubic operator
source
PolynomialModelReductionDataset.AllenCahn.integrate_modelMethod
integrate_model(tdata, u0)
integrate_model(tdata, u0, input; kwargs...)

Integrate the Allen-Cahn model using the Crank-Nicholson (linear) Adam-Bashforth (nonlinear) method (CNAB) or Semi-Implicit Crank-Nicolson (SICN) method.

Arguments

  • tdata::AbstractArray{T}: time data
  • u0::AbstractArray{T}: initial condition
  • input::AbstractArray{T}=[]: input data

Keyword Arguments

  • linear_matrix::AbstractArray{T,2}: linear matrix
  • cubic_matrix::AbstractArray{T,2}: cubic matrix
  • control_matrix::AbstractArray{T,2}: control matrix
  • system_input::Bool=false: system input flag
  • const_stepsize::Bool=false: constant step size flag
  • u3_jm1::AbstractArray{T}=[]: previous cubic term

Returns

  • x::Array{T,2}: integrated model states

Notes

  • If system_input is true, then control_matrix must be provided.
  • If const_stepsize is true, then the time step size is assumed to be constant.
  • If u3_jm1 is provided, then the cubic term at the previous time step is used.
  • integrator_type can be either :SICN for Semi-Implicit Crank-Nicolson or :CNAB for Crank-Nicolson Adam-Bashforth
source
